Altinn Studio Reference User interface Components AttachmentList

AttachmentList

Shows a list of all (or some) attachments uploaded in the form

Usage

The AttachmentList component can be used to show all attachments uploaded in the form, as well as link to them so that the user can download them. You can also limit the component to only show a selection of attachment types/data types.

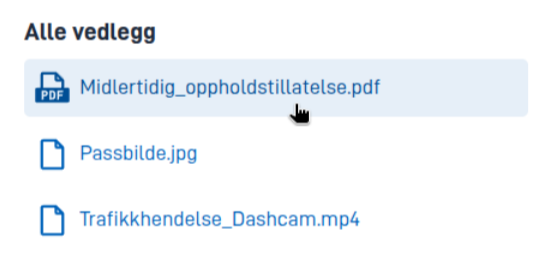

Anatomy

AttachmentList

Properties

The following is a list of the properties available for AttachmentList.

We are currently updating how we implement components, and the list of properties may not be entirely accurate.

Property	Type	Description
`id`	string	The component ID. Must be unique within all layouts/pages in a layout set. Cannot end with .
`type`	string	Must be `AttachmentList`.
`textResourceBindings.title`	string	Title to be displayed over the list of attachments.
`dataTypeIds`	string[]	List of data types to be displayed in the list. If no data types are specified, all attachments will be shown.
`links`	boolean	Shows links to the attachments in the list. This is enabled by default. If it is disabled (set to `false`), only the names of the attachments will be shown along with icons.

Configuration

We are currently updating Altinn Studio Designer with more configuration options! The documentation is continuously updated, and there may be more settings available than what is described here, and some settings may be in beta version.

Add component

You can add a component in Altinn Studio Designer by dragging it from the list of components to the page area. Selecting the component brings up its configuration panel.

Basic component:

App/ui/layouts/{page}.json

{
  "$schema": "https://altinncdn.no/toolkits/altinn-app-frontend/4/schemas/json/layout/layout.schema.v1.json",
  {
    "data": {
      "layout": [
        {
          "id": "myAttachmentList",
          "type": "AttachmentList",
          "textResourceBindings": {
            "title": "All attachments"
          }
        }
      ]
    }
  }
}

Limit attachment types

You can limit the component to show a selection of attachment types/data types. Valid values are:

All data types defined in applicationmetadata.json under dataTypes, except for data models (these are never considered attachments)
The data type ref-data-as-pdf (represents automatically generated PDF files for a filled-out form).

Example:

{
  "id": "myAttachmentList",
  "type": "AttachmentList",
  "textResourceBindings": {
    "title": "Some attachments"
  },
  "dataTypeIds": [
    "ref-data-as-pdf",
    "my-custom-data-type"
  ]
}
