SigningDocumentList

A component that displays the signing package

Usage

The SigningDocumentList component displays the signing package. The form data and any other documents which are to be signed on the current signing task will be displayed here. The component may only be used on a signing task.

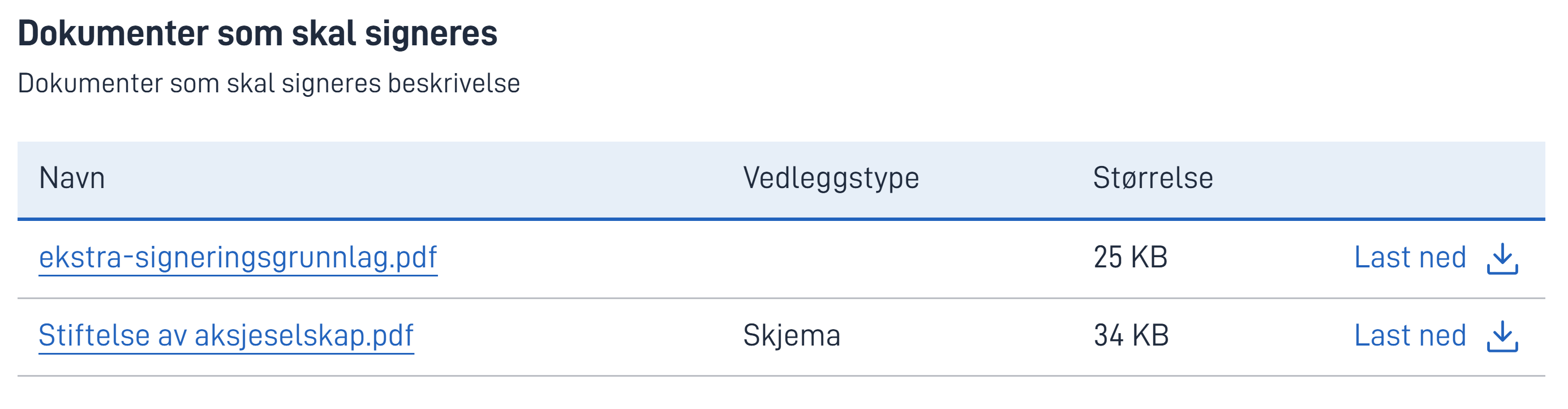

Anatomy

The component consists of:

1. Title - Component title.
2. Help - Click for help pop-up. Optional.
3. Description - Description.
4. Content - A table showing the signing package. This includes name, attachment type, size and a download button for each entry.

Configuration - Example

A data model must be created to persist any additional documents for the signing package: { “id”: “extra-documents-to-sign”, “allowedContentTypes”: [ “application/pdf”, “image/png”, “text/plain”, … ], “taskId”: “task-where-instance-owner-adds-documents”, …
},

The signing package must be defined in the process.bpmn file:

    <altinn:signatureConfig>
      <altinn:dataTypesToSign>
        //The form data is a part of the signing package
        <altinn:dataType>ref-data-as-pdf</altinn:dataType>
        //The extra documents are a part of the signing package
        <altinn:dataType>extra-documents-to-sign</altinn:dataType>
      </altinn:dataTypesToSign>
    </altinn:signatureConfig>

The component is added to a page layout as such:

  {
    //The ID of the component
    "id": "signing-documents",
    //The type, must be set to SigningDocumentList
    "type": "SigningDocumentList",
    "textResourceBindings": {
      //The title
      "title": "Dokumenter som skal signeres",
      //The description
      "description": "Dokumenter som skal signeres beskrivelse"
    }
  },

The attachment type of a document may be changed by adding one or more tags.
