Filtering

Removing some options from the list

Filtering is a way to remove some of the options from the list. This can be useful if you want to limit which options the user can choose from.

Keep in mind that there are different approaches to making options dynamic:

1. You can use dynamics to hide and show entirely different components based on a condition. These components could be bound to the same location in the data model, but have different options. Note that automatic cleanup may unexpectedly remove values from the data model when using this approach. Test thoroughly to ensure form data is not lost when using this method.
2. By using dynamic options and passing query parameters to the backend, you can write custom code to generate a different set of options based on those query parameters. This may be useful, but can cause lots of traffic to the backend if the options are frequently changing.
3. Using options from the data model you can set up options based on a repeating structure in the data model. In combination with data processing on the backend, this can be a powerful way to create custom options even when dynamic options based on query parameters would be problematic.

Filtering options via the optionFilter property works with all of the above, and with plain static options as well. It allows you to use a dynamic expression to filter out options based on the current state of the form.

Configuration

In the example below, the optionFilter property is set to a dynamic expression that filters out the option should-be-removed. Note that the optionFilter property accepts an expression to determine which options to keep. To remove an option, you should invert the logic. One way to do this is by writing the expression inside a not function call.

The expression is evaluated for each option, and if it returns true, the option is kept. All other options are removed.

{
  "id": "dropdown-component-id",
  "type": "Dropdown",
  ...
  "options": [
    { "value": "should-be-removed", "label": "Should be removed" },
    { "value": "red", "label": "Red" },
    { "value": "blue", "label": "Blue" }
  ],
  "optionFilter": ["notEquals", ["value"], "should-be-removed"]
}

The result of the above configuration will be a dropdown with two options: “Red” and “Blue”.

The value function

In the example above, the value function is used to access the value of the current option. This function can be used with arguments to access other values in the option as well.

• ["value"] and ["value", "value"] are equivalent, and will return the value of the current option.
• ["value", "label"] will return the label of the current option. This label is the text given in the label property of the option, before any text resources are looked up.
• ["value", "description"] will return the description of the current option, if set.
• ["value", "helpText"] will return the help text of the current option, if set.

Used alongside options from the data model

When using optionFilter with options from the data model, the expression will be evaluated for each row in the repeating structure. This means that if you look up the data model (via the dataModel function) in the expression, you will have access to data from the row that the option was fetched from.

If there is a RepeatingGroup component associated with this repeating structure, the optionFilter property can also look up values from the component function to access data from components inside the repeating group. The return value from this function will always be null if the row is hidden using dynamics in the hiddenRow property, even if a lookup with the dataModel function would return data from the hidden row.

An example using this combination:

{
   "id": "choose-pet",
   "type": "Dropdown",
   ...
   "source": {
      "group": "MyPets",
      "label": ["dataModel", "MyPets.Name"],
      "value": "MyPets[{0}].Id"
   },
   "optionFilter": [
      "and",
      ["notEquals", ["dataModel", "MyPets.Name"], null],
      ["notEquals", ["component", "pet-owned-by-someone-else"], true],
      ["notEquals", ["value"], "example-cat-id"]
   ]
}

In this example, the optionFilter property will filter out all pets that:

• Do not have a name (the path MyPets.Name is null or an empty string)
• Are owned by someone else (the value in the pet-owned-by-someone-else component is true). In this example, we assume that this component is set up inside a RepeatingGroup component that is associated with the MyPets structure.
• Have the ID example-cat-id. Since the value field is fetched from the path MyPets[{0}].Id, the result will be the same as if you wrote ["notEquals", ["dataModel", "MyPets.Id"], "example-cat-id"].

Example: Filtering duplicate options in a repeating group

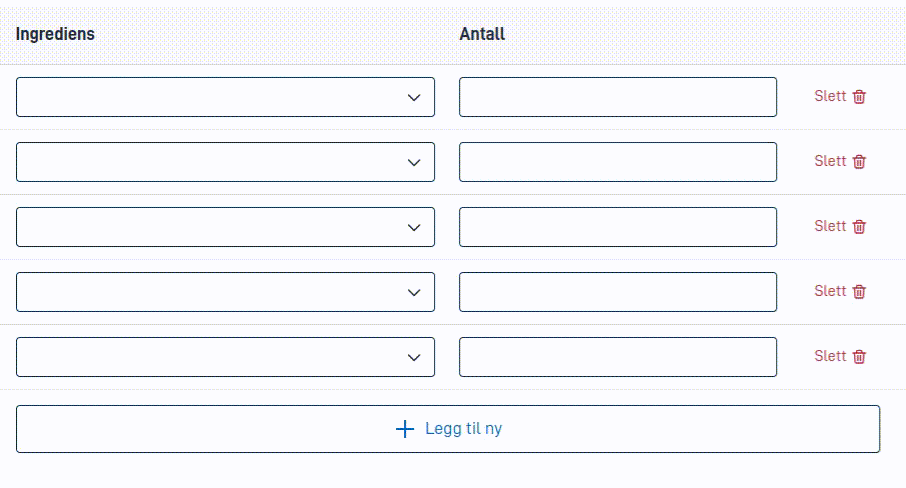

In the following animation, a RepeatingGroup component has been set up with a Dropdown component inside. The Dropdown component has a optionFilter property that removes options that have already been used in other rows in the repeating group.

The configuration for this example is as follows:

{
   "id": "ingredientType",
   "type": "Dropdown",
   "textResourceBindings": {
      "title": "Ingrediens"
   },
   "dataModelBindings": {
      "simpleBinding": "Ingredients.Type"
   },
   "optionsId": "foods",
   "optionFilter": [
      "or",
      // Remove those that have been used elsewhere
      ["not", ["commaContains", ["dataModel", "UsedTypes"], ["value"]]],
      // But not if it's the currently chosen ingredient here
      ["equals", ["component", "ingredientType"], ["value"]]
   ]
}

A few things to note about the configuration:

1. The already used types are stored in a comma-separated list in the UsedTypes field in the data model. This field is updated using a data processor that finds all the unique types in the Ingredients array.
2. If we just checked the UsedTypes field against the value of the current Dropdown component, as soon as an ingredient was chosen, it would be removed from the list of options and would be automatically cleaned up. For this reason, we also check that the value is not equal to the data set in the current Dropdown component.
