TimePicker

A component that allows users to select a time value in a form.

Usage

The TimePicker component allows users to select a time value in a form. It provides a user-friendly interface for time input with support for various time formats including 12-hour and 24-hour formats, with optional seconds display.

  1. Simple: The user can input a time using the keyboard, or the up and down arrows. Switch between hour/minute/second with arrow buttons or tab.

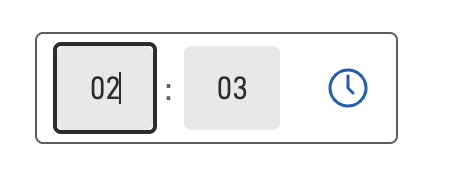

    Timepicker input
    Timepicker input
  2. Dropdown: Clicking on the clock icon opens the dropdown, allowing the user to pick the time with the mouse.

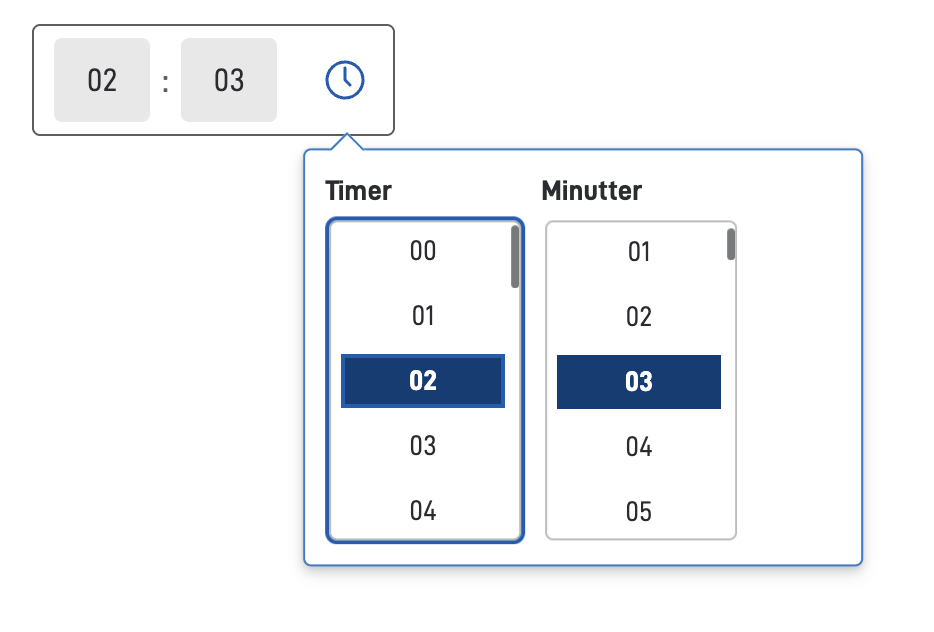

    Timepicker dropdown
    Timepicker dropdown

Properties

PropertyTypeDescription
idstringThe component ID. Must be unique within all layouts/pages in a layout-set. Cannot end with .
dataModelBindings.simpleBindingstringData model binding for the component’s connection to a single field in the data model. The field should be a string.
textResourceBindings.titlestringThe title/label text for the component.
textResourceBindings.descriptionstringThe description text for the component (optional).
textResourceBindings.helpstringThe help text for the component (optional).
requiredbooleanBoolean or expression indicating if the component is required when filling in the form. Defaults to false.
readOnlybooleanBoolean or expression indicating if the component should be presented as read only. Defaults to false.
formatstringTime format used for displaying and input. Defaults to HH:mm.

Enum: [HH:mm, HH:mm:ss, hh:mm a, hh:mm:ss a]
minTimestringSets the earliest allowed time in HH:mm format. Can be a static value or an expression.
maxTimestringSets the latest allowed time in HH:mm format. Can be a static value or an expression.
hiddenbooleanBoolean value or expression indicating if the component should be hidden. Defaults to false.

Configuration

Add component

{
  "id": "appointment-time",
  "type": "TimePicker",
  "dataModelBindings": {
    "simpleBinding": "appointmentTime"
  },
  "textResourceBindings": {
    "title": "Select appointment time"
  }
}

Time format

The format property controls how the time is displayed and inputted. You can choose between 24-hour and 12-hour formats, with optional seconds.

format

Sets the time format for display and input. Based on common time formatting patterns.

  • HH:mm - 24-hour format without seconds (default)
  • HH:mm:ss - 24-hour format with seconds
  • hh:mm a - 12-hour format with AM/PM, without seconds
  • hh:mm:ss a - 12-hour format with AM/PM, with seconds

Example

TimePicker with 12-hour format:

{
  "id": "appointment-time",
  "type": "TimePicker",
  "dataModelBindings": {
    "simpleBinding": "appointmentTime"
  },
  "textResourceBindings": {
    "title": "Select appointment time"
  },
  "format": "hh:mm a"
}

Time constraints

You can set minimum and maximum allowed times using the minTime and maxTime properties.

minTime

Sets the earliest allowed time. Must be in HH:mm format (24-hour). Can be a static value or an expression.

maxTime

Sets the latest allowed time. Must be in HH:mm format (24-hour). Can be a static value or an expression.

Example

TimePicker limited to business hours (9 AM - 5 PM):

{
  "id": "appointment-time",
  "type": "TimePicker",
  "dataModelBindings": {
    "simpleBinding": "appointmentTime"
  },
  "textResourceBindings": {
    "title": "Select appointment time",
    "description": "Select a time between 9 AM and 5 PM"
  },
  "minTime": "09:00",
  "maxTime": "17:00",
  "format": "hh:mm a",
  "required": true
}
