Solution Architecture

Altinn 3 Correspondence solution architecture for basic use cases of Managed File Transfers.

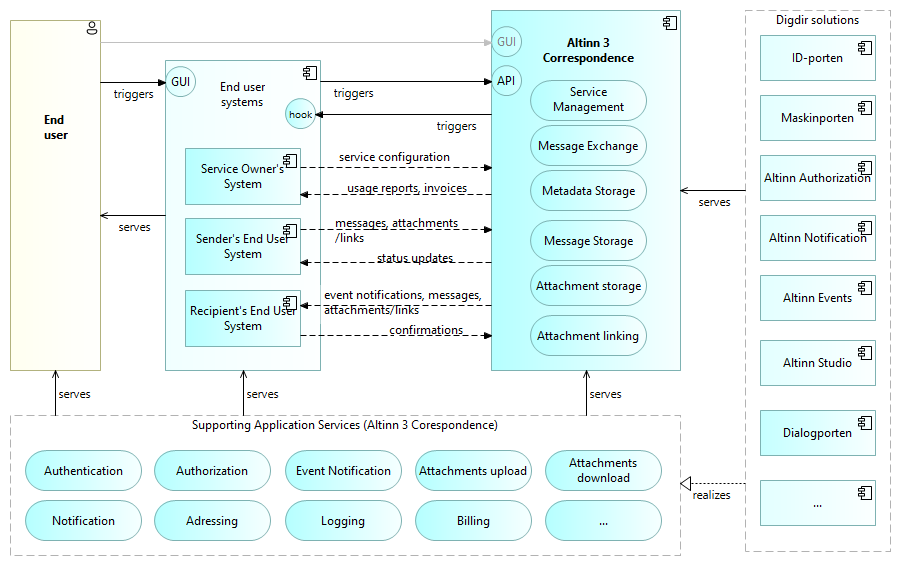

High Level Solution Overview – main building blocks

The following figure gives a high level solution overview.

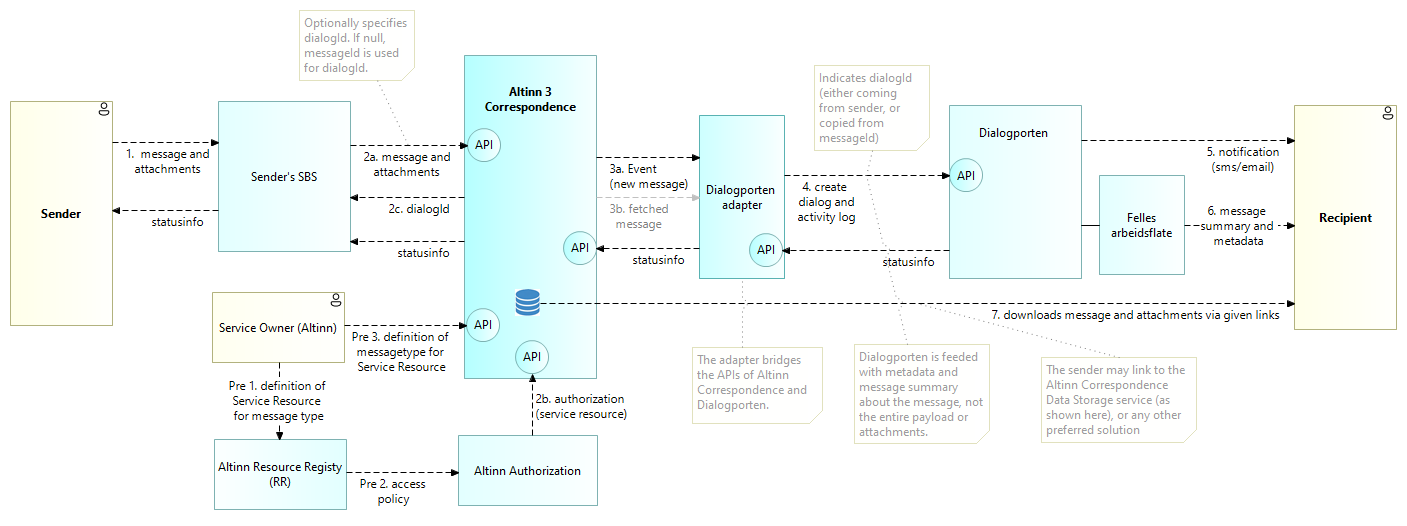

Integration with Dialogporten and Arbeidsflate

Security Controls

Authentication and authorization

Authentication and authorization are supported through Dialogporten (end users), Maskinporten (system-to-system) and Altinn Authorization.

This primarily protects against the following threats:

• Unauthorized access: Only legitimate users and systems gain access to resources.
• Privilege escalation: Access is granted following the principle of least privilege.
• Session hijacking and data leaks: Strong authentication mechanisms reduce risk.

Checksum validation

For attachments, a checksum (MD5) can be provided by the sender and verified after upload to ensure integrity. Mismatch leads to failure.

Malware scanning

Uploaded attachments are scanned with Microsoft Defender for Storage. Findings lead to failure/blocking, the event is logged and relevant events are published.

In-transit protection

All communication uses TLS/HTTPS, both towards platform services and onwards to end users/systems.

At-rest protection

Attachments and metadata are stored in Azure services encrypted at rest (platform encryption). Access is controlled via authorization and the platform’s network/access controls.

DDoS mitigation

Mitigation is handled through Altinn/the platform’s Azure API Management (APIM), including use of policies that constrain traffic patterns.

Secure coding practices

Following Altinn’s secure development guidelines (e.g., logging, error handling, least privilege) contributes to robustness.

Open source

Open source enables transparency, community review, and rapid vulnerability remediation.

Key vault

Azure Key Vault is used in infrastructure and deployment pipelines for secure handling of secrets. The application primarily uses Managed Identity to access Azure resources.

Security controls through Azure API Management

• Rate limiting and quotas
• IP filtering (configured in the platform’s APIM)
• Basic protection against malicious requests

Network security controls

• Isolation and segmentation handled at the platform level
• Network security rules (e.g., database firewall)
• Secure communication (VPN, etc.) where relevant for platform services

Penetration testing

Testing is carried out according to Altinn/the platform’s security and test regime to discover and remediate weaknesses.
