Event capabilities

Description of the event-driven architecture for Altinn Apps and Altinn Platform.

På denne siden:

This is work-in-progress. Things may change

The new generation of Altinn is moving to an event-driven architecture. This means that the Altinn Platform solution and applications running in Altinn Apps will publish events that application owners (agencies) and parties(citizens and businesses) can subscribe to and react to.

Most components inside the Altinn Platform and Altinn Apps solutions will communicate through synchronous HTTP calls.

Overall Concept

In Altinn there will over time be thousands of different digital services deployed to Altinn Apps. Those digital services will be accessed by the citizens and the businesses in Norway.

They will receive and submit data to/from the entity that is responsible for the digital service and others using the platform. Event concept

The event architecture would make it possible to get notified when there are events in the platform related to data that the different actors have interest in. It could be anything from the digital service (app) owner being notified that a citizen has completed a form, to that the citizen is informed that there is a new form he needs to fill out.

Events

Events would be a combination of standard events defined by the platform and custom events added in an application by application developers.

The events will typically only contain information about that an event has happened with a reference to some data that was changed because of that event.

Standard events could be

  • An instance is created
  • An instance changes state (from one process task to another, example: data -> signing)
  • An instance is completed

Custom events could be

  • A user has asked for a deduction in a form
  • A specific validation of data failed

Event attributes

Events would typically have some attributes used for filtering.

  • [org] - The application owner / service owner that owns the source (app) of the event. Example: SKD, NAV
  • [app] - The app the event is created for. Example: taxreport
  • [instanceid] - The instanceid:
  • [eventtype] - The type of event. Created, completed ++. Free text not locked to a schema.

An event will contain a limited set of information. To get the full details for an event the consumer would need to get all details using APIs.

Event Producers

This is a start. Going forward other event sources can be added, for example from Altinn 2.

Altinn Platform

Storage is probably the one component that would create the most standard events.

This could be events for the creation of instances when instances state is updated and so on. We would need to define what kind of standard events storage should create.

The assumption is that all process change events logged to instance events in storage would be published to the event architecture with limited information.

Applications

Applications hosted in the Altinn Apps infrastructure would be able to create events.

The application template will contain API so logic in applications can publish events based on rules defined by the developer.

These app events could be anything, and could also be triggered by other external systems through custom APIs in the app.

Event consumers

Orgs (application owners)

Orgs will need to know about events happening in their apps in Altinn.

For some orgs there is a need for subscribing to events for a specific app, others might want to subscribe to all events, or maybe a specific type of event.

Parties (persons and organizations)

Parties submitting and receiving data in Altinn would benefit from knowing about events. This could be feedback has been added to a form, or that a new message has been received.

In many cases, parties use professionals to handle their data in Altinn. These professionals typically have many hundred or thousands of clients.

Requirments

The following requirements are identified for the new event architecture in Altinn 3.

TODO: Verify requirements
  • It should be possible to subscribe to a specific type of event. (Example alls instance.process.completed events for a given app)
  • It should be possible to go at least 3 months back in history.
  • The consumer will keep track of which events the consumer has processed.
  • The architecture should be able to list feeds for 5 000 000 users and 1 000 000 businesses.
  • The architecture should support more than 10 000 publishers.
  • The architecture should support more than 1 000 000 consumers.
  • The architecture should support more than 500 000 000 events a year.
  • Access to events should be authorized. Accessing an event for a party requires that the consumer has the correct role

See also Referansearkitektur for datautveksling

Event Principles and pattern

During the analysis, the following principles and pattern has been applied

Expose events through REST-API

  • Use of REST-API ensures low complexity for consuming events
  • REST-API URLS and parameters are uses for filtering

Small events

  • The events will only contain a small amount of data. If more information is needed this is available from the resource itself
  • Every event links to the resource affected by the event.
  • We use CloudEvent as format.

Consumers keep track of their status

  • Consumers will

Time is used for sequencing

  • The published time is the parameters used for sorting events

Events does not change

  • Events for a resource are never changed. A new event can revert an earlier event

Events are stored for a limited time

  • Events will be available for 3 months. (todo: needs to be verified)

Event Architecture

As part of the Altinn 3 solutions there is defined a event architecture to support the above requirements and capabilities.

The Events component will expose clean and simple REST APIs.

Event Schema

The Altinn 3 will use the defined CloudEvents specification to describe events in Altinn Apps and Altinn Platform.

The reason for choosing cloud events are

  • It is a standardized and open format as preferred by our architecture principles
  • It backed by many and The specification is now under the Cloud Native Computing Foundation
  • It is flexible so it would support scenarios in the future

Below you find a offical example. See full JSON Schema

{
    "specversion" : "1.x-wip",
    "type" : "com.github.pull.create",
    "source" : "https://github.com/cloudevents/spec/pull",
    "subject" : "123",
    "id" : "A234-1234-1234",
    "time" : "2018-04-05T17:31:00Z",
    "comexampleextension1" : "value",
    "comexampleothervalue" : 5,
    "datacontenttype" : "text/xml",
    "data" : "<much wow=\"xml\"/>"
}
  • specversion: The version of the CloudEvents specification which the event uses. This enables the interpretation of the context. Compliant event producers MUST use a value of 1.x-wip when referring to this version of the specification.
  • type: This is the event type. Examples: instance.created, instance.process.paymentcompleted, instance.process.completed
  • source: Describes what the event is related to. Will be used to filter event types. For an app it would typical be /{org}/{app}/{partyId}/{instanceGuid}. This would be used for consumers to look up a given instance.
  • subject: The party the event is related to. PartyID is used.
  • id: Unique id for a given event.
  • time: The time the event was triggered. Set by the publisher.
  • datacontenttype: Optional. Content type of data value. This attribute enables data to carry any type of content, whereby format and encoding might differ from that of the chosen event format
  • data: Optional. Can contain a structure of data specific for an event type.

In addition to the spec there is added alternativesubject as an extension to the event model. This will be used for socical secuirty number, organization number or other identifier in addition to the partyId found in subject property.

Currently this can be

  • fnr : social security number (11 digits)
  • orgno: organization number (9 digits)

The value will be prefixed

Example 1

A instance has been created for a given party. It is not possible from the event itself to know who did it.

[{
  "source":  "https://skd.apps.altinn.no/skd/skattemelding/instances/1234324/6fb3f738-6800-4f29-9f3e-1c66862656cd",
  "subject": "party/1234324",
  "type": "instance.created",
  "time": "2020-02-20T08:00:06.4014168Z",
  "id": "91f2388f-bd8c-4647-8684-fd9f68af5b14",
  "alternativesubject": "/person/01038712345"
}]
Example 2

A user has completed the confirmation1 task in the process.

[{
  "source":  "https://skd.apps.altinn.no/skd/skattemelding/instances/234234422/2acb1253-07b3-4463-9ff5-60dc82fd59f8",
  "subject": "party/234234422",
  "type": "app.instance.process.taskcompleted.confirmation1",
  "time": "2020-03-16T10:23:46.6443563Z",
  "id": "91f2388f-bd8c-4647-8684-fd9f68af5b14",
  "alternativesubject": "/organization/974760673"
}]
Example 3

A user/system has completed the process for an instance.

[{
  "source":  "https://skd.apps.altinn.no/skd/skattemelding/instances/234234422/2acb1253-07b3-4463-9ff5-60dc82fd59f8",
  "subject": "party/234234422",
  "type": "app.instance.process.completed",
  "time":  "2020-02-20T09:06:50.3736712Z",
  "id": "91f2388f-bd8c-4647-8684-fd9f68af5b14",
  "alternativesubject": "/organization/974760673"
}]

Event components

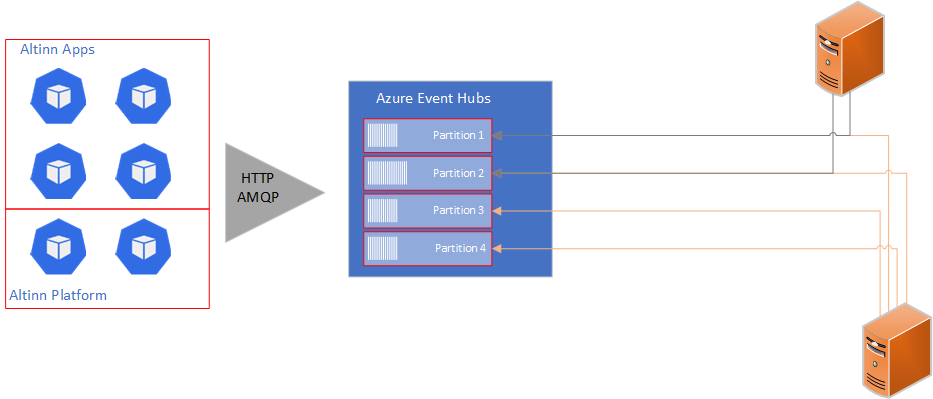

The below diagram shows the different components in the proposed Event Architecture for Altinn 3.

Event architecture diagram

Altinn Event Architecture

More details can be in solutions components with detailed API info of event component and in construction components you find the technical details how the components are constructed.

Delegating access to events

There are serveral user scenarios when there is a need to delegate access to the events for a given party to another user/organisation.

Delegating Org access

For orgs (application owners) there might be some scenarios where they want to give access to events for a given application. This delegation is done through Maskinporten.

Delegating party event access

In general, access to events for a given party will be authorized based on roles the requesting organization/user have for the subject of the event.

Detailed Scenarios

Org waiting on ProcessComplete for a given app

In this scenario, an org is waiting on end-users to complete one given app.

  1. System (consumer) authenticates using Maskinporten and requests scope altinn:events/{org}/{app}

  2. System exchanges Maskinporten token to an Altinn token. Scopes is included in new token.

  3. System calls

    GET {platformurl}/events/api/v1/app/{org}/{app}?from={lastchanged}&eventType=instance.process.completed

  4. Event component verifies that scope matches request

  5. Event components searches Cosmos DB for events that matches search criteria

  6. Event component returns the filtered and possible capped response ordered by sequence

  7. Consumer process the received events and call other API to download related data (instances, files, etc)

User needing to know if there is anything new for a party

In this scenario, a user wants to see if there are any changes for a client or the user itself.

  1. System authenticates end user with ID-porten

  2. System exchanges token with Altinn

  3. System calls event API

    POST {platformurl}/events/api/v1/party/

  4. Event component query events in database.

  5. Event components authorized the event and filter away events where user is not authorized

  6. Events are returned

  7. Consumer process events

  8. Consumer gets relevant data

Organization needing to know if there are anything new for a party

In this scenario a professional organization wants to see if there are any changes for a client or the organization itself.

  1. System authenticates end user with Maskinporten

  2. System exchanges token with Altinn

  3. System calls event api

    POST {platformurl}/events/api/v1/party/

  4. Event component query events in database

  5. Event components authorized the event and filter away events where user is not authorized

  6. Events are returned

  7. Consumer process events

  8. Consumer gets relevant data

Approved organization needs to know about changes for all reportees

This is a scenario where some organizations like banks need to be informed when somebody dies and a “deathestate” is created for that user.

Anonym access to a given instances events

Not implemented yet.

In this scenario the end user has used a system to submit data, and the system needs to follow up if any feedback is given to the instance without the user needing to log in.

  1. System calls event api
POST {platformurl}/events/instanceeventsforinstance/{instanceId}
  1. Event component query events in database
  2. Events are returned
  3. The Consumer process events
  4. The Consumer gets relevant data

Push Events

Altinn Events will also support push of events.

Consumers would be able to add a subscription for specific types of event either for a specific source or for a specific subject.

Throug API consumers would be able to add and remove subscriptions

  • Consumer need to set up URL webhook that would receive all or a filtered list of events.

See details in this Github issue

Event Analytics

With a new event architecture it is possible imagine that we can run analytics on the events to give important insight in to the data in the platform.

Example

  • How many instances is created for the different applications
  • How long time does each task take to complete
  • Is there any relationship between apps.

This is analyzed in the following issue

Altinn Platform Events as a national event hub

The event capabilities in Altinn Platform is possible to use outside Altinn Apps and Altinn Platform similar to how Altinn Authorization is used by external wihout deploying any digital services to the platform.

How this should work is not analyzed and specified yet. The isse is found here

Open Clarification

  • Would it be ok to cap the response from feed for the latest second or two to reduce the change for loosing events because of timing an paralell events.

Other event concepts in the platform

Events are used in different scenarios in the platform.

  • Instance Events - Events that happen on a given instance. It could be created, saved, ++ This is stored to cosmos DB. The number of details in these events is higher than we would put on an event feed. See Instance Events in Storage
  • Application logic events - These are events where app developers could implement logic to get a specific behavior. Calculation, validation ++ This type of event is probably not relevant to push to the event feed.
